TS250RS-PK/A TS250RS Saw Package Deal

TS250RS-PK/A TS250RS Saw Package Deal

The TS250RS features a cast iron saw unit mounted on two substantial cast iron trunnions, CNC machined for accuracy and smooth operation. The trunnions are mounted on a solidly fabricated steel base to reduce vibration passing through to the table.

The sliding table has been upgraded and with the optional squaring frame offers a professional solution to panel sizing and cross cutting. Both tables are machined for accuracy.
Blade tilt and rise are handled smoothly by separate mechanisms operated by a rolled acme thread solid steel lead screw. The rip fence is mounted on a solid steel bar with a heavy cast mount featuring micro adjustment. This machine makes no compromises, offering repeatable accuracy on both panel work and solid timber and offers exceptional value for money. If you are in the market for a good quality, versatile saw then make sure you seek out this machine at a local dealer or show, as it needs to be seen to fully appreciate the value on offer.

Shown with optional right hand extension.
On the Inside

On the Inside

Not all machines are the same. Whilst looking impressive from the outside, it is what’s on the inside that really counts and Record Power table saws are much more heavily made than competition at the same price. Make sure you research alternatives thoroughly and look inside if you can.

Optional Squaring Table

Optional Squaring Table

The optional squaring table comes with swinging arm support, extendable cross cut rail and flipover stop to easily and accurately handle large sheet materials.

Rise and Fall

Rise and Fall

Separate rise and fall table tilt handwheels - providing smooth and accurate control via thick steel bars with rolled acme threads for fast smooth action.

High Quality Sliding Beam

High Quality Sliding Beam

The sliding beam rests on a substantial mount offering smooth and accurate operation. Stroke is generous at 1225mm and can cut 10’ x 8’ sheets across the width.

Beam Stop

Beam Stop

The Sliding beam features a sturdy stop allowing the beam to be held in position safely when sliding action is not required.

Robust Fence System

Robust Fence System

The heavy extrusion is fixed to a solid cast iron mount and fitted with micro-adjustment. The whole unit slides smoothly on an industrial style solid steel bar, which has adjustment that will stay put once set.

Right Hand Extension: Right Hand Extension

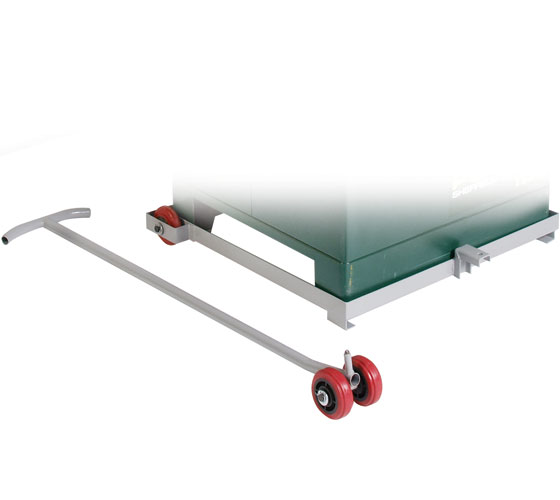

Wheel Kit: Wheel Kit

Squaring Frame: Squaring Frame

Sliding Beam: Sliding Beam

Blade Tilt up to 45º: Blade Tilt up to 45º

Scoring Blade: Scoring Blade

Cast Iron Table: Cast Iron Table

Cast Iron Fence Mount: Cast Iron Fence Mount

Cam Lock Fence: Cam Lock Fence

Fence Micro-Adjustment: Fence Micro-Adjustment

Cast Iron Saw Unit: Cast Iron Saw Unit

Maximum Blade Size: 250 mm

Scoring Blade Size: n/a

Blade Bore: 30 mm

Scoring Blade Bore: n/a

Blade Speed: 4000 rpm

Maximum Rip Capacity: 610 mm

Maximum Rip with Right Hand Extension: 930 mm

Sliding Carriage Stroke: 1225 mm

Blade Tilt: 0 - 45�

Maximum Depth of Cut at 90º: 80 mm

Maximum Depth of Cut 45º: 54 mm

Table Height from Floor: 855 mm

Motor: 2 hp

Weight: 162 kg

Size: H1090 x W2115 x D1322 mm

Download

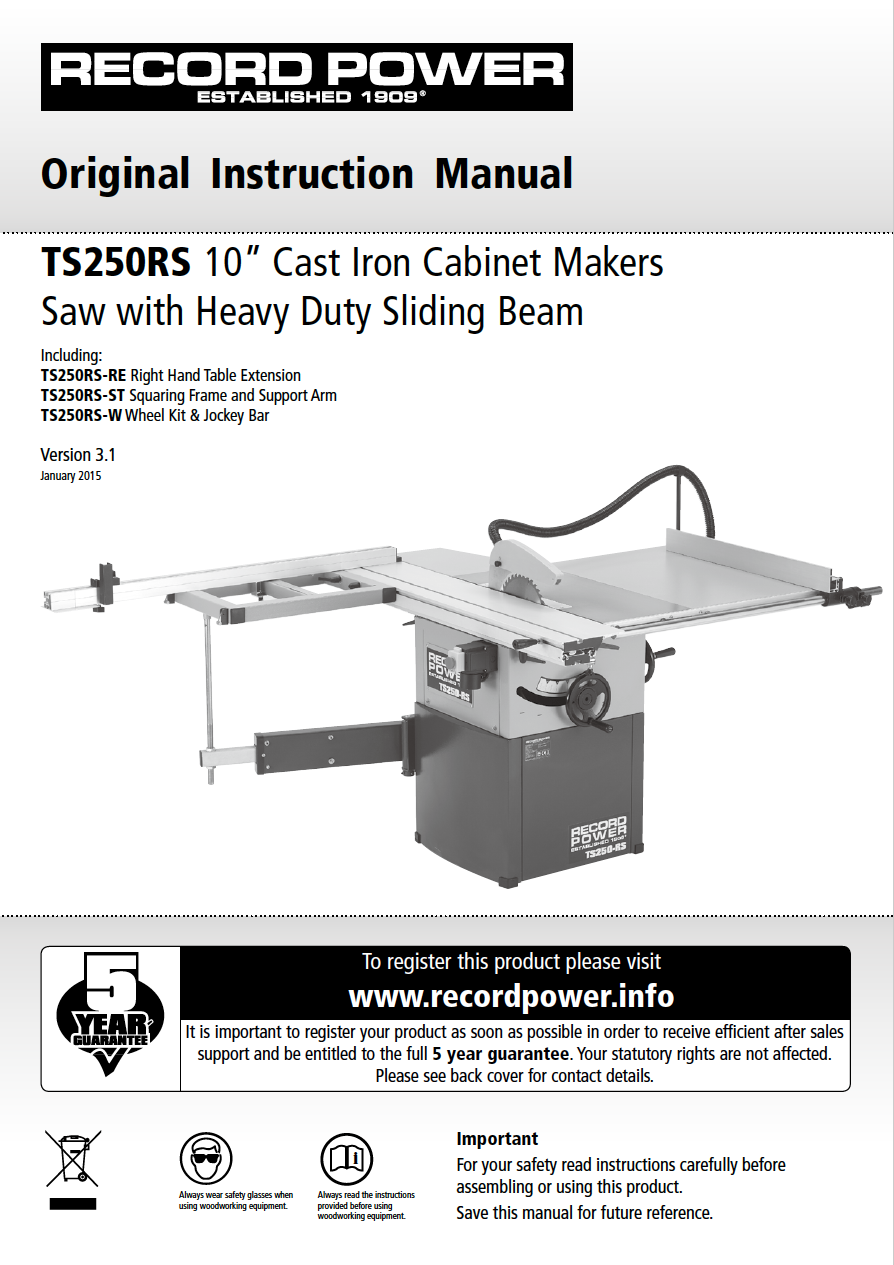

TS250RS Manual 3.1

PDF reader required
