104790 CGV336-3, 55L 1000W Medium Extractor, 4" Inlet

104790 CGV336-3, 55L 1000W Medium Extractor, 4

The CGV336 offers an impressive 55 litre capacity whilst also being very compact.The cyclonic neutral vane theory technology draws the waste into the drum with great force and directs it around the outside edge, keeping the filters cleaner and allowing the waste to fall to the bottom of the drum.

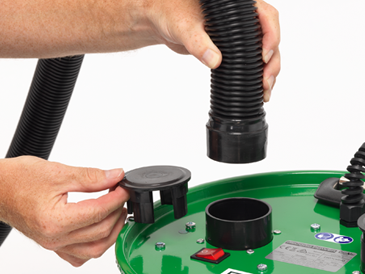

The lid features a low-noise-output motor exhaust design and when the optional 2 1/2" diameter hose is fitted, the sound of the motor can be directed away from the machine, greatly reducing noise in the workshop.



Low Noise Output

Low Noise Output

CamVac machines are probably the quietest high-pressure-low-volume (HPLV) dust extractors available. The motor exhaust and cover design effectively reduce noise during operation, with tests showing sound levels as low as 74 dB on a single motor model. When the optional 2 1/2" hose is fitted to the motor exhaust, this can be reduced to approximately 68 dB, making them the ideal option if neighbourhood noise is a concern.

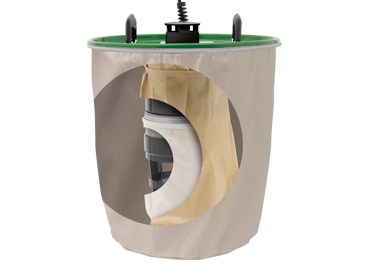

Three-Stage Filtration to 0.5 Microns

Three-Stage Filtration to 0.5 Microns

The drum filter and motor filters give three-stage filtration for fine dust, using two washable cloth filters and a paper filter system. The 0.5 micron filtration makes them ideal for use with fine dust and other materials hazardous to health.

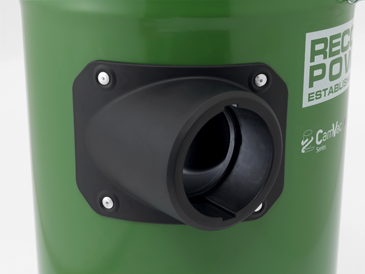

Cyclonic Inlet

Cyclonic Inlet

All CamVac models feature a unique cyclonic inlet system, which draws the waste around the side of the drum and away from the filters and motors, increasing their lifespan.

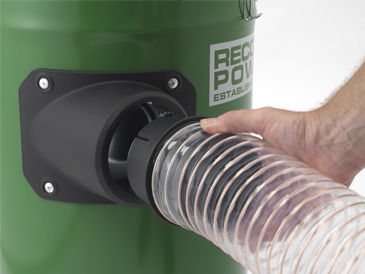

Bayonet Inlet Fitting

Bayonet Inlet Fitting

The machine inlet features a bayonet fitting, allowing for fast and easy connection of the extraction hose to the machine. Each machine is supplied with a corresponding bayonet hose fitting, which has a positive, secure and tight fit around the hose. Additional bayonet hose fittings are available.

CamVac Dust Extractors - Now Featuring New, Improved Bayonet-Style Inlet Fittings
CamVac Dust Extractors - Now Featuring New, Improved Bayonet-Style Inlet Fittings

Wheel kit: Wheel kit

Single Motor: Single Motor

Twin Motor: Twin Motor

Triple Motor: Triple Motor

Three Stage Filtration: Three Stage Filtration

Low Noise Output: Low Noise Output

Cyclonic Bayonet Inlet: Cyclonic Bayonet Inlet

Cyclonic Steel Pipe Inlet: Cyclonic Steel Pipe Inlet

Filtration: 0.5 microns

Air Flow: 54 litres per second

Capacity: 55 litres

Motor Power: 1 x 1 kW

Inlet Diameter: 4" (100 mm)

Weight: 10.5 kg

Size: W370 x H412 x D624 mm

Download
Record Power CamVac Manual 3.6

PDF reader required


104790 CGV336-3, 55L 1000W Medium Extractor, 4
104790
Wheel kit
Wheel kit
Single Motor
Single Motor
Twin Motor
Twin Motor
Triple Motor
Triple Motor
Three Stage Filtration
Three Stage Filtration
Low Noise Output
Low Noise Output
Cyclonic Bayonet Inlet
Cyclonic Bayonet Inlet
Cyclonic Steel Pipe Inlet
Cyclonic Steel Pipe Inlet
Filtration
0.5 microns
Air Flow
54 litres per second
Capacity
55 litres
Motor Power
1 x 1 kW
Inlet Diameter
4" (100 mm)
Weight
10.5 kg
Size
W370 x H412 x D624 mm
