16007 Herald Heavy Duty Cast Iron Electronic Variable Speed Lathe

16007 Herald Heavy Duty Cast Iron Electronic Variable Speed Lathe
Magazine Reviews
I found the lathe a delight to use.
Woodturning

This lathe from Record Power represents the culmination of many decades of expertise in the manufacture and supply of superior woodturning lathes. Developed with the help of professional woodturners and keen hobbyists, we believe we have produced a world-class machine for woodturners of all levels. Thanks to a number of innovative design solutions the capabilities, features and performance of the Herald far exceed anything a machine of this size has been capable of before - It brings top-end professional performance at a fraction of the size and cost of comparable heavy-duty machines.

To reflect the Record Power heritage in a modern context, the look of the lathe incorporates the elegant and balanced curves of the earlier Coronet series in a more streamlined and efficient form. As well as looking great, the Herald feels great - the excellence of engineering, ergonomics and quality manufacturing can be felt throughout, making the lathe a pleasure to use whilst delivering rock solid performance.

State-of-the-Art Motor and Full Electronic Variable Speed

State-of-the-Art Motor and Full Electronic Variable Speed

The 750 W motor features the latest in motor technology to give huge amounts of torque, comparable to lathes over twice the size and motor rating. Instantaneous speed change is achieved using the easily accessible control panel. Reversing is also offered for sanding or left handed turning (Must be used only with suitable locking systems for chucks and accessories).

Rotating and Repositionable Headstock

Rotating and Repositionable Headstock

Unlike most cast bed lathes, the headstock of the Herald can be rotated 360º, optimising access and also making it ideal for left-handed turners, who can effectively turn this machine into a fully left-handed lathe using the reverse facility of the control system. A bearing system beneath the headstock allows it to be located in popular positions. The headstock can also be moved along the lathe bed if required.
Cam Lock

Cam Lock

The tool rest holder is locked in place instantly with the easy to use cam locking system.

Heavy Duty Tool Rest Stem

Heavy Duty Tool Rest Stem

The 1" diameter tool rest stem helps minimise vibration, giving a smoother and easier cut.

3 Step Pulley

3 Step Pulley

A 3 step pulley is provided for maximum versatility. For most turning the middle pulley is perfect and provides good torque but if you need maximum torque comparable to much larger lathes for heavy cuts or low speed work, then the bottom pulley has immense torque capability. For very small work, polishing or burnishing acrylics, the top pulley gives access to very high speeds.

Hand Wheel

Hand Wheel

The headstock features a substantial hand wheel to turn the spindle, making fitment of headstock accessories much easier.

Heavy Duty Spindle Lock and Indexing

Heavy Duty Spindle Lock and Indexing

Holds the spindle securely and offers a full 24 point indexing function.

Innovative Tailstock Design

Innovative Tailstock Design

The tailstock has been designed to allow easier access to the cam lock handle at the rear. It is also profiled and open on one side for comfortable grip when sliding along the bed. It has been recently upgraded to feature the self-ejecting function, meaning that accessories can be removed from the tailstock by simply turning the hand wheel until they are ejected. The lead screw now stays inside the tailstock body, reducing exposure to dust and the hand wheel has been made larger and heavier, giving easier operation.

The Ideal Bench-Top Lathe

The Ideal Bench-Top Lathe

With the optional bench feet fitted, the Coronet Herald is the perfect bench-top lathe, being compact yet still capable of handling large workpieces.

Floor-Standing Configuration

Floor-Standing Configuration

The optional leg stand allows the Herald to function as a compact yet powerful floor-standing lathe.

Woodturning Masterclass on the Coronet Herald Lathe with Professional Woodturner Andrew Hall
Woodturning Masterclass on the Coronet Herald Lathe with Professional Woodturner Andrew Hall

Professional woodturner Andrew Hall provides a woodturning masterclass using the Record Power Coronet Herald lathe. Andrew explains his background in woodturning, key approaches and techniques he recommends, plus fundamental points regarding the lathe. Andrew also illustrates step-by-step the process he uses to create his trademark Blues Bowl guitars.

Coronet Herald Heavy Duty Cast Iron Electronic Variable Speed Lathe from Record Power
Coronet Herald Heavy Duty Cast Iron Electronic Variable Speed Lathe from Record Power

This lathe from Record Power represents the culmination of many decades of expertise in the manufacture and supply of superior woodturning lathes. Developed with the help of professional woodturners and keen hobbyists, we believe we have produced a world-class machine for woodturners of all levels. Thanks to a number of innovative design solutions the capabilities, features and performance of the Herald far exceed anything a machine of this size has been capable of before - It brings top-end professional performance at a fraction of the size and cost of comparable heavy-duty machines.

Swivel Headstock: Swivel Headstock

Outboard Turning: Outboard Turning

Cast Iron Bed: Cast Iron Bed

Solid Steel Bed Bars: Solid Steel Bed Bars

Integral Legstand: Integral Legstand

Extendable Bed Length: Extendable Bed Length

Bench Mountable: Bench Mountable

Spindle Lock: Spindle Lock

Electronic Variable Speed: Electronic Variable Speed

Bowl Rest: Bowl Rest

Legstand: Legstand

Variable Speed Upgrade: Variable Speed Upgrade

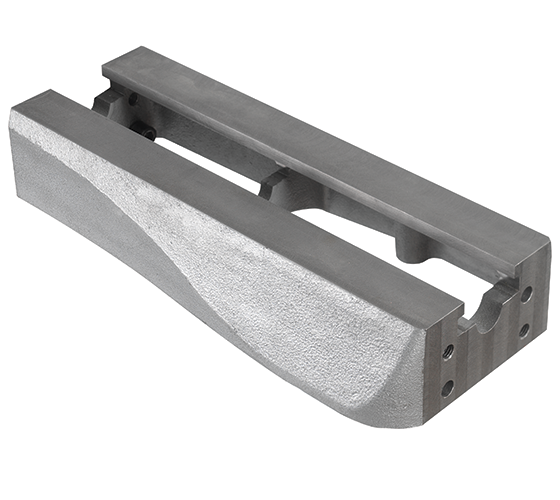

Bed Extension: Bed Extension

Maximum bowl diameter: 533 mm (21")

Maximum between centres: 508 mm (20")

Maximum swing over bed: 355 mm (14")

Spindle speeds: 95-3890 rpm

Motor input P1: 1 kW

Motor output P2: 0.75 kW

Thread: M33

Taper: 2 Morse taper

Weight: 48 kg

Size: W870 x D290 x H252 mm

Magazine Reviews
I found the lathe a delight to use.
Woodturning
Download
Coronet Herald Manual 3.8 (English)

PDF reader required
Download
Coronet Herald Manual 3.8 (German)

PDF reader required
Download
Coronet Herald Manual 3.8 (French)

PDF reader required


16007 Herald Heavy Duty Cast Iron Electronic Variable Speed Lathe
16007
Swivel Headstock
Swivel Headstock
Outboard Turning
Outboard Turning
Cast Iron Bed
Cast Iron Bed
Solid Steel Bed Bars
Solid Steel Bed Bars
Integral Legstand
Integral Legstand
Extendable Bed Length
Extendable Bed Length
Bench Mountable
Bench Mountable
Spindle Lock
Spindle Lock
Electronic Variable Speed
Electronic Variable Speed
Bowl Rest
Bowl Rest
Legstand
Legstand
Variable Speed Upgrade
Variable Speed Upgrade
Bed Extension
Bed Extension
Maximum bowl diameter
533 mm (21")
Maximum between centres
508 mm (20")
Maximum swing over bed
355 mm (14")
Spindle speeds
95-3890 rpm
Motor input P1
1 kW
Motor output P2
0.75 kW
Thread
M33
Taper
2 Morse taper
Weight
48 kg
Size
W870 x D290 x H252 mm
