BS300E Premium 12" Bandsaw

BS300E Premium 12
Magazine Reviews
The BS300E is a very good saw for the money.
Good Woodworking
4 Star Rating4 Star Rating4 Star Rating4 Star Rating4 Star Rating
The BS300E is a great all rounder perfectly specified for the medium sized workshop where a range of duties will be required.
Featuring a solid fence, vital for accurate ripping, which has a heavy extrusion mounted on a cast iron base and fixed to a solid steel bar for maximum rigidity and support. This is based on an industrial Startrite design and much more solid than other fences at this level. The machine also features a solid double trunnion fence mount to provide rigid table support and one-handed table tilt on a smooth rack and pinion. Adding to the structural integrity of the BS300E are the cast iron bandwheels which are fitted with precision ground rubber tyres to provide a flywheel effect for smooth cutting. A solid blade tension indicator is fitted to the rear of the machine to allow for easy setup. The BS300E is also supplied with a basic wheelkit
as standard.

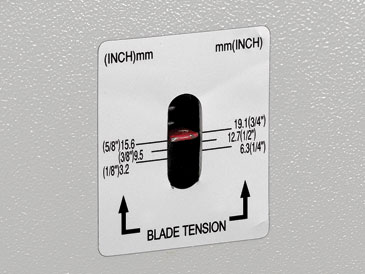

Blade Tension Indicator

Blade Tension Indicator

Is situated on the rear of the machine.

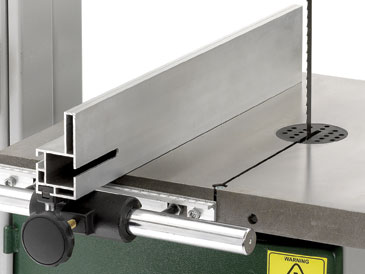

Industrial Style Fence

Industrial Style Fence

This high quality fence features a heavy extrusion mounted on a cast iron base, which moves along a solid steel bar. This provides exceptional strength and accuracy and is easily locked with the brass screw and handle.

Large Cast Iron Table

Large Cast Iron Table

Provides a strong and steady work area to support large workpieces. Finely ground finish enables effortless movement of the timber.

Cast Iron Band Wheels

Cast Iron Band Wheels

Are dynamically balanced and provide a flywheel effect for improved cutting performance. Rubber tyres are precision ground for easy blade fitting and smooth drive.

Tracking System

Tracking System

Easy blade tracking to give accurate positioning of blade.

Toolpost Support

Toolpost Support

Features jacking screws for easy adjustment.
Accurate and Easy to Use Blade Guides

Accurate and Easy to Use Blade Guides

Blade guides need accurately setting if they are to be of any use – so easy access and adjustment are a must. Our guides, similar to those found on industrial machines, give good quality adjustment with minimal need for tools.

Trunnion

Trunnion

Solid double trunnion table mount for rigid table support featuring one handed rack and pinion table tilt for ease of use and accuracy. Mounted on top of bandwheel box with jacking screws for easy adjustment.

Bandsaw Masterclass DVD Included

Bandsaw Masterclass DVD Included

Presented by Alan Holtham, this indispensable DVD gives a thorough and comprehensive introduction to bandsaw use, setup, maintenance and blade choice.

Stool Woodworking Project Idea Using a Bandsaw
Stool Woodworking Project Idea Using a Bandsaw
See the Record Power BS300E 12" Bandsaw being used to make a great stool project.
Record Power BS300E 12
Record Power BS300E 12" Bandsaw

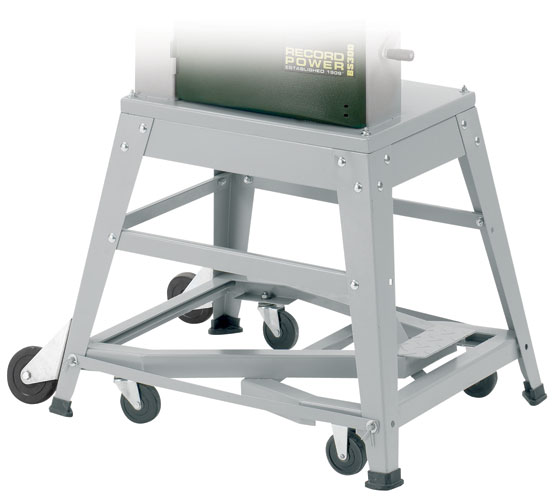

Pedal Wheel Kit: Pedal Wheel Kit

Jockey Bar Wheel Kit: Jockey Bar Wheel Kit

Tilting Table: Tilting Table

Integral Legstand: Integral Legstand

Integral Standard Wheel Kit: Integral Standard Wheel Kit

Cast Iron Table: Cast Iron Table

Cast Iron Band Wheels: Cast Iron Band Wheels

Mitre Fence Included: Mitre Fence Included

Cam-Action Tensioner: Cam-Action Tensioner

Two Speeds: Two Speeds

Maximum Depth of Cut: 190 mm

Throat Depth: 305 mm

Table Size: 480 x 400 mm

Table Height from Floor: 990 mm

Motor input P1: 1 kW

Motor output P2: 0.75 kW

Blade Length: 93 1/4"

Blade Width Capacity: 1/4 - 3/4"

Blade Speed: 820 & 380 M / minute

Extraction Port Diameter: 100 mm

Weight: 80 kg

Size: H1690 x W880 x D680 mm

Magazine Reviews
The BS300E is a very good saw for the money.
Good Woodworking
4 Star Rating4 Star Rating4 Star Rating4 Star Rating4 Star Rating
This is an excellent machine.
The Woodworker
4.5 Star Rating4.5 Star Rating4.5 Star Rating4.5 Star Rating4.5 Star Rating
Download
BS300E Manual 3.2

PDF reader required


BS300E Premium 12
BS300E
Pedal Wheel Kit
Pedal Wheel Kit
Jockey Bar Wheel Kit
Jockey Bar Wheel Kit
Tilting Table
Tilting Table
Integral Legstand
Integral Legstand
Integral Standard Wheel Kit
Integral Standard Wheel Kit
Cast Iron Table
Cast Iron Table
Cast Iron Band Wheels
Cast Iron Band Wheels
Mitre Fence Included
Mitre Fence Included
Cam-Action Tensioner
Cam-Action Tensioner
Two Speeds
Two Speeds
Maximum Depth of Cut
190 mm
Throat Depth
305 mm
Table Size
480 x 400 mm
Table Height from Floor
990 mm
Motor input P1
1 kW
Motor output P2
0.75 kW
Blade Length
93 1/4"
Blade Width Capacity
1/4 - 3/4"
Blade Speed
820 & 380 M / minute
Extraction Port Diameter
100 mm
Weight
80 kg
Size
H1690 x W880 x D680 mm
