48503 PT310 Heavy Duty Planer Thicknesser 230v With Spiral Cutter Block and Wheel Kit

48503 PT310 Heavy Duty  Planer Thicknesser 230v With Spiral Cutter Block and Wheel Kit
The Record Power PT310-HB is a compact yet extremely accurate, powerful and easy to use heavy-duty planer thicknesser. It has been designed to offer serious home users a high-performance solution for accurate dimensioning of timber.

At the heart of this machine is the helical cutter block. It features 56 TCT cutter heads arranged in a helical format over four rows. The blades themselves are machined to a convex profile to achieve a shear cut, resulting in an extremely high-quality finish to the timber. This method of cutting is extremely efficient and reduces the power consumed and strain on the machine when compared to the traditional 3-knife cutter block planer thicknesser. The arrangement of the cutter blocks also allows for increased airflow between the blades, ensuring the air is exhausted from the machine efficiently which greatly reduces the operating noise by up to 50% over traditional machines.

The helical block creates small, evenly sized chippings, meaning more effective extraction is achieved, further adding to the operating efficiency of this machine. The TCT blades last 10-20 times longer than traditional HSS planer blades and each cutter block has four sides, so when the blades become blunt, simply rotate them to expose a fresh cutting edge. In comparison to a traditional 3-knife machine, blade change and setup is simple and easy as each cutter block is secured to the block in a fixed position – meaning no intricate setup operations are necessary.

Another key feature of the PT310-HB is its parallel table lift design. Changeover from planing to thicknessing mode is fast and easy - simply loosen the cam action table locks and lift the entire table assembly, including the fence, in one movement.

To further ensure a smooth, superior finish, the outfeed roller is rubber-coated to reduce marking of the timber as it is fed from the machine. Easy to use, powerful and accurate, the PT310-HB gives professional performance and results in a compact and cost-effective package.

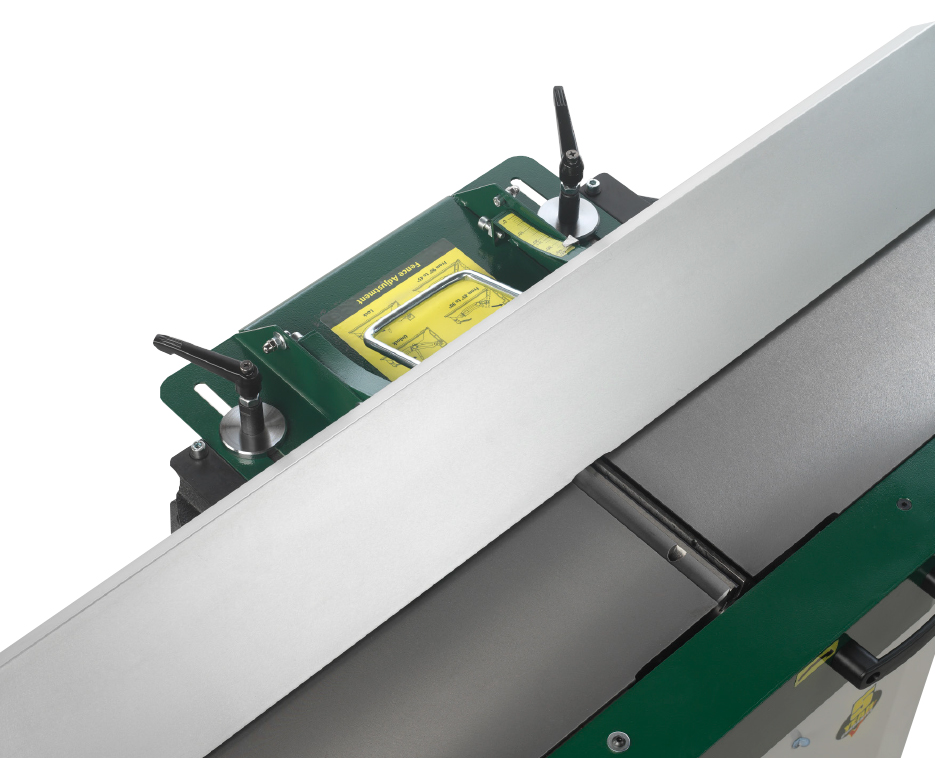

 Fence tilts to 45º

Fence tilts to 45º

The fence can be quickly tilted to 45º with the simple to use fence mount system.

Helical Cutter Block

Helical Cutter Block

The helical block ensures a silky-smooth finish is achieved, whilst reducing operating noise. The TCT cutter blocks last 10-20 times longer than traditional blades and are simple and easy to replace.

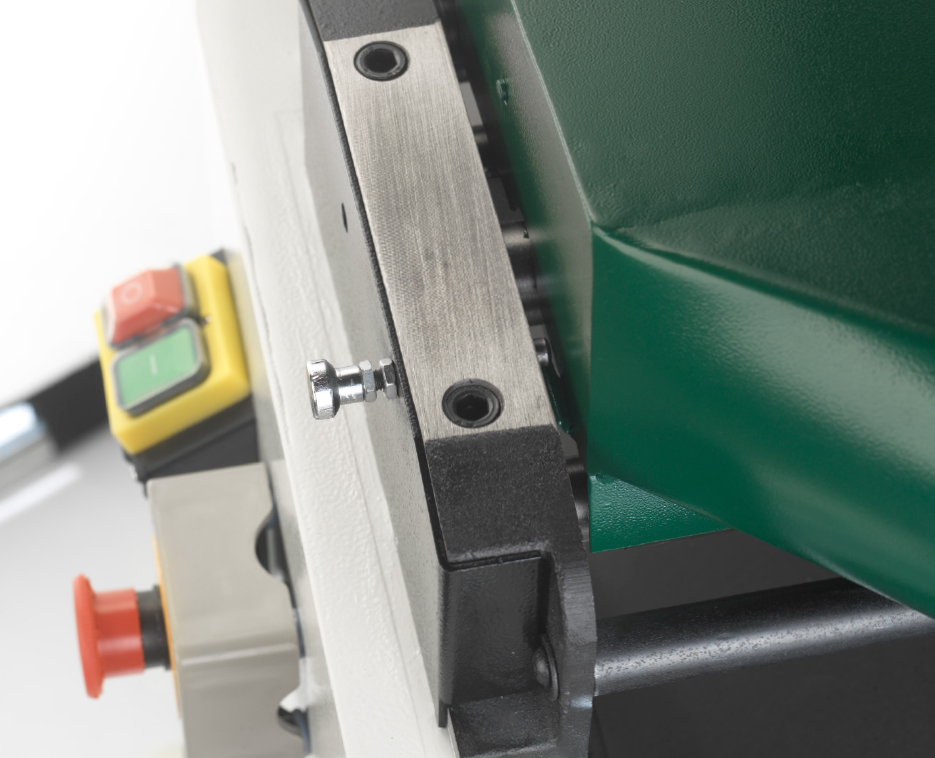

Dust Hood Retention Catch for Safety

Dust Hood Retention Catch for Safety

This catch eliminates the risk of the dust being accidentally removed and therefore exposing the blades.

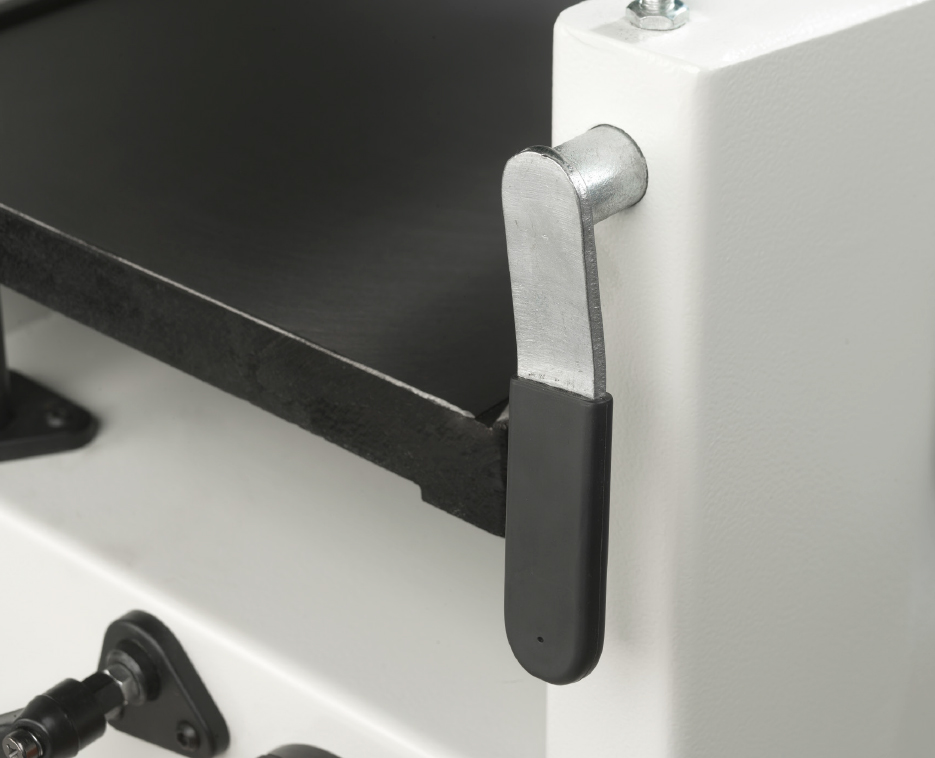

Easy to Use Cam-Action Table Lock

Easy to Use Cam-Action Table Lock

The tables are locked in place in seconds with the easily accessible lock levers.

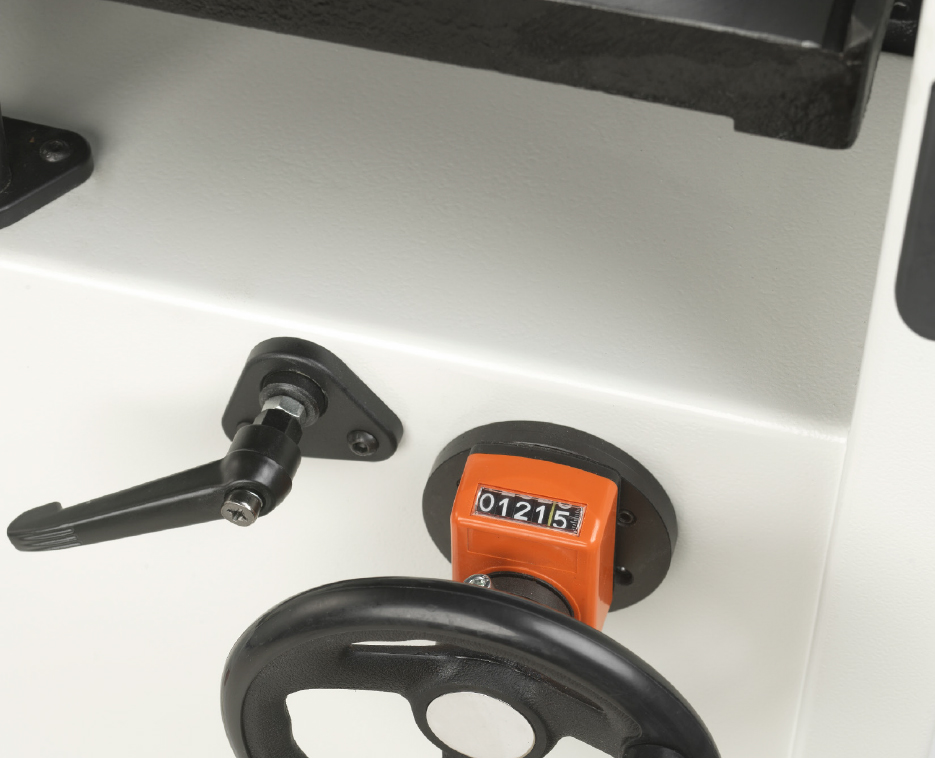

Digital Readout

Digital Readout

Accurately shows position of the thicknessing table.

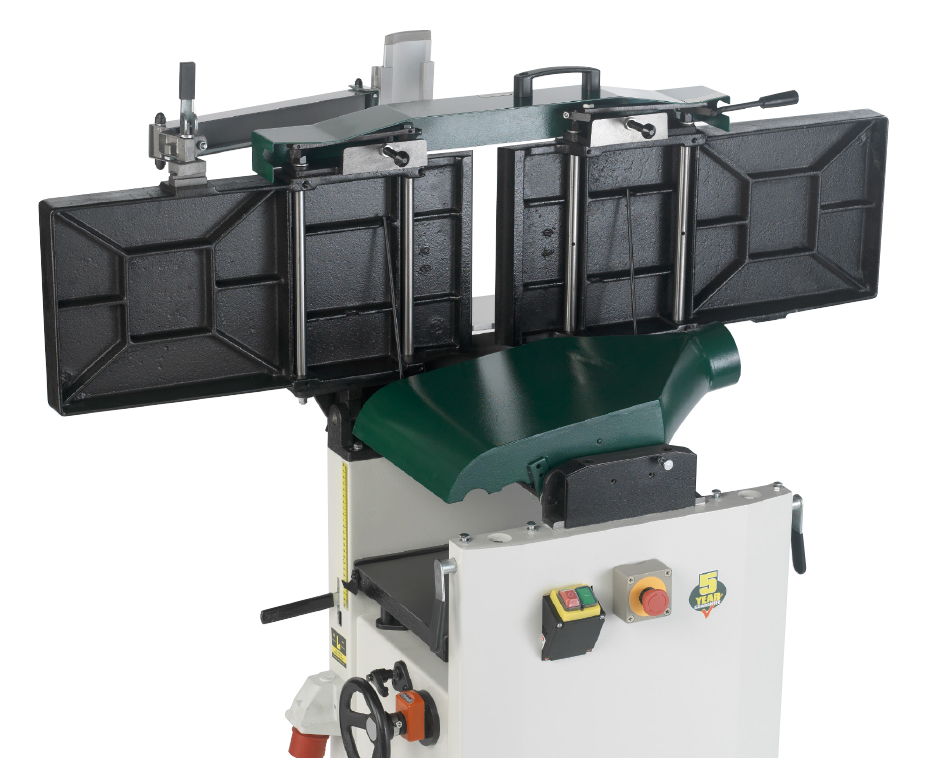

Parallel Table Lift

Parallel Table Lift

Fast and easy changeover for improved work flow.

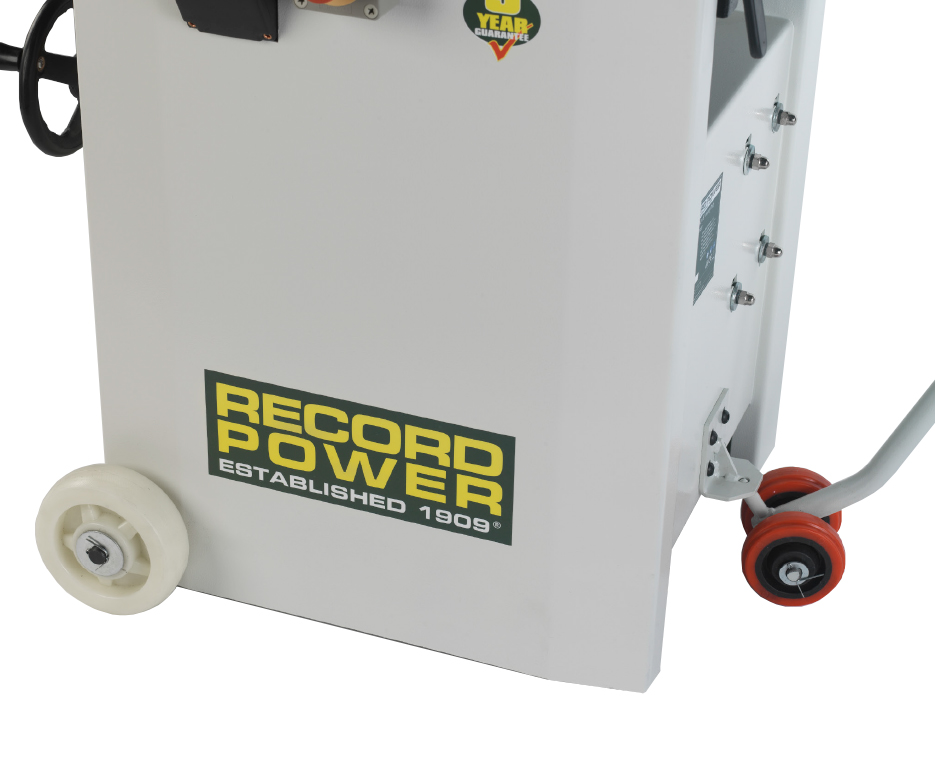

Jockey Bar Wheel Kit

Jockey Bar Wheel Kit

For easy movement around the workshop.

Jockey Bar Wheel Kit: Jockey Bar Wheel Kit

Tilting Fence: Tilting Fence

Cast Iron Tables: Cast Iron Tables

Swing Away Table: Swing Away Table

Rubber Out-Feed Rollers : Rubber Out-Feed Rollers

Central Thicknessing Column: Central Thicknessing Column

Independent In & Out Feed Table Adjustment: Independent In & Out Feed Table Adjustment

Wheel Kit Included: Wheel Kit Included

Thicknesser Feed Rate: 7 metres / minute

Cutter Block Diameter: 70 mm

Maximum Thicknessing Height: 230 mm

Maximum Thicknessing Width: 310 mm

Maximum Thicknesser Depth of Cut: 3 mm

Maximum Planing Width: 310 mm

Maximum Planer Depth of Cut: 3 mm

Planing Table Length: 1407 mm

Motor input P1: 2.75 kW

Motor output P2: 2.2 kW

Weight: 202 kg

Size: W1407 mm x D745 mm x H1005 mm

Download
PT310 and PT310-HB Manual 3.2

PDF reader required
Download
PT310 and PT310-HB Manual 3.2 (German)

PDF reader required
Download
PT310 and PT310-HB Manual 3.2 (French)

PDF reader required
